Xstation - PicoStation - DeltaStation QSB for PlayStation PS1 console

The Delta QSB for PlayStation PS1 were specifically developed to simplify the integration of X-Station, PicoStation, and DeltaStation ODEs, while fully respecting the original architecture of Sony PlayStation consoles.

Thanks to their Quick Solder Board design, these QSBs allow for a precise, clean, and repeatable installation, ideal for demanding modders as well as experienced integrators.

⚙️ General Features

- Dedicated QSB design for each motherboard revision

- Clean installation with no ribbon cables or complex wiring

- Reduced wiring and soldering errors

- Full respect of the original PCB

- DIY assembly kit

- Compatible with X-Station, PicoStation, and DeltaStation (depending on model)

ODE Compatibility:

- X-Station

- PicoStation

- DeltaStation

▶ QSB PU-7 – PS1 SCPH-1000

- SCPH-1000

▶ QSB PU-8 LATE – PS1 SCPH-100X / 3X00 / 5000

- SCPH-1001

- SCPH-1002

- SCPH-3000

- SCPH-3500

- SCPH-5000

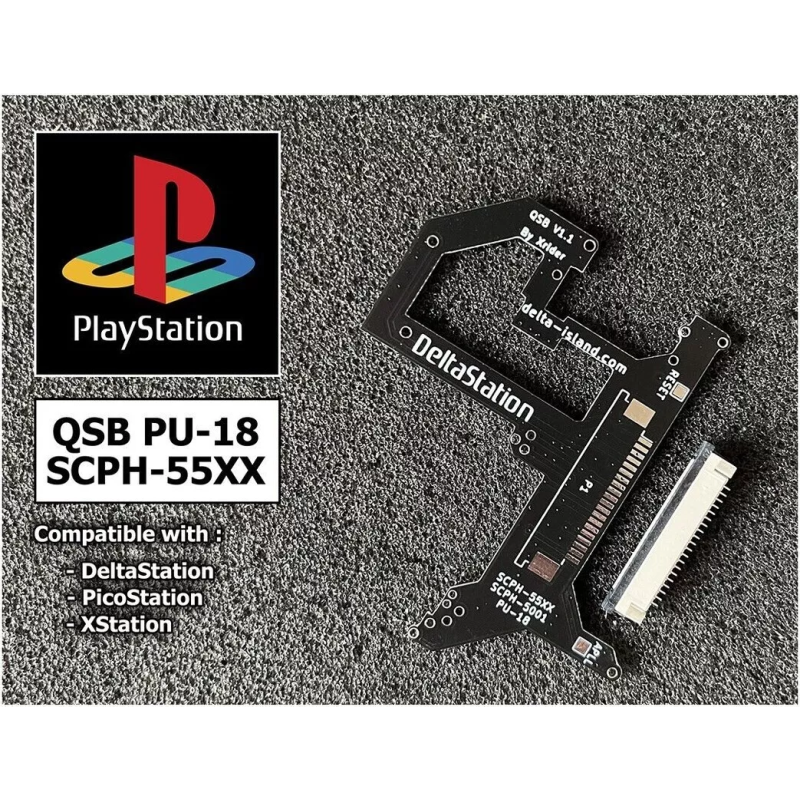

▶ QSB PU-18 – PS1 SCPH-550X

- SCPH-5500

- SCPH-5501

- SCPH-5502

- SCPH-5552

- SCPH-5503

Package Contents

• 1 x QSB

• 1 x 20-pin SMD connector (to be soldered)

Official installation guides:
https://github.com/x-station/xstation-releases/blob/main/PU-7_Install_Guide.pdf

https://github.com/x-station/xstation-releases/blob/main/LATE_PU-8_Install_Guide.pdf

https://github.com/x-station/xstation-releases/blob/main/PU-18_Install_Guide.pdf

⚠️ Important Information

• Requires fine soldering skills

• ODE not included

• Please verify your motherboard revision before ordering
