TUTORIEL - PlayStation - Delta SmartWave

[Xrider]

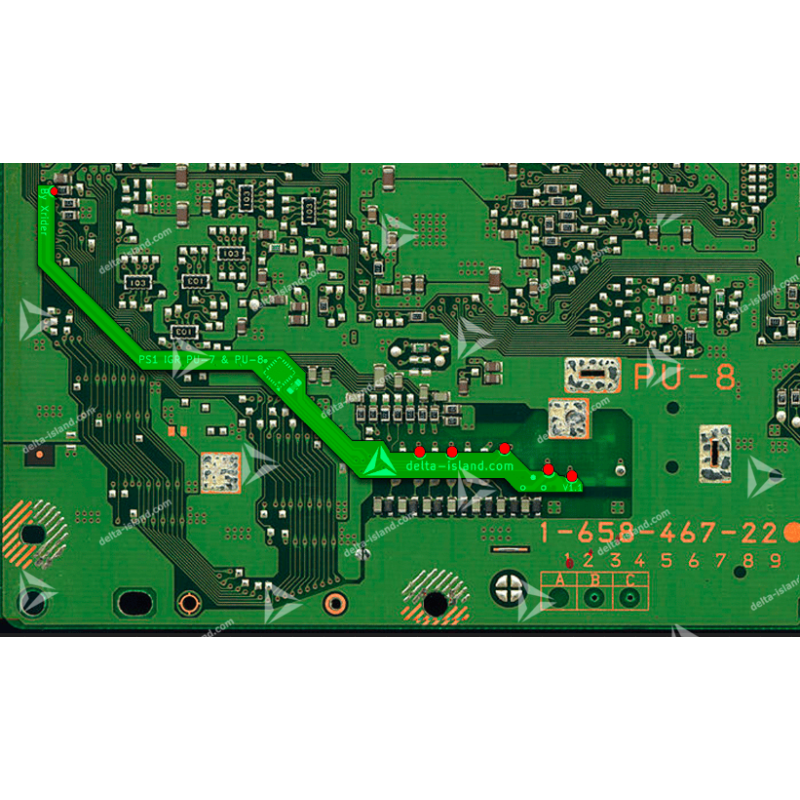

Will the in game reset QSB also work?
Pre pu-8 version

Hello,

Yes, perfectly match and working
You can find it here :
https://delta-island.com/store/index.ph ... _scph_1000

[Wazier]

Thanks top

[Wazier]

Do I need a psnee with this board?

[Xrider]

Do I need a psnee with this board?

No, you have DTL-1101, it’s Freezone, you don’t need Delta PSNee

[Wazier]

Ok thanks will order soon

[Wazier]

Any plans for psone version and tutorial.
Also howbto mod the psone lcd to support ntsc and pal
Also with the subcarrier

[Xrider]

Any plans for psone version and tutorial.
Also howbto mod the psone lcd to support ntsc and pal
Also with the subcarrier

Hello,

PSone no need Smartwave
For the LCD, the LCD need modding for that

[thepratz]

Can anybody tell me what the SP point on the EARLY PU-8 is ? Is that the subcarrier frequency of 4,43 / 3,57 Mhz ?

[Xrider]

Can anybody tell me what the SP point on the EARLY PU-8 is ? Is that the subcarrier frequency of 4,43 / 3,57 Mhz ?

Hello, is not frequency subcarrier, it's selector for NTSC / PAL for RGB encoder. All it's automatic with Delta SmartWave

[thepratz]

Can anybody tell me what the SP point on the EARLY PU-8 is ? Is that the subcarrier frequency of 4,43 / 3,57 Mhz ?

Hello, is not frequency subcarrier, it's selector for NTSC / PAL for RGB encoder. All it's automatic with Delta SmartWave

Thanks for the answer. Yes I know and I already ordered one for the PU-8 early. But I still want to understand it especially the difference of one more solder point to the PU-8 late or the PU-18. So to my understanding these are the solder points of the PU-8 early doing. Is that correct? And how does it select NTSC / PAL for RGB encoder? Just a high and low (0/1) ?

[Xrider]

Hello,

The SmartWave for PU-7 and PU-8 Early is very different from the other versions.
It is not simply based on a High or Low signal level.

Why do you need this information exactly ?

[thepratz]

Hello,

The SmartWave for PU-7 and PU-8 Early is very different from the other versions.
It is not simply based on a High or Low signal level.

Why do you need this information exactly ?

Yes quite different indeed. Because normally I mod my consoles with a RP2040 zero and a Si5351 for IGR and DFO. But on my PU-8 early I get a nasty screwed up picture. So Basically I want to make my cheapass mod compatible with PU-7 and PU-8 early.
